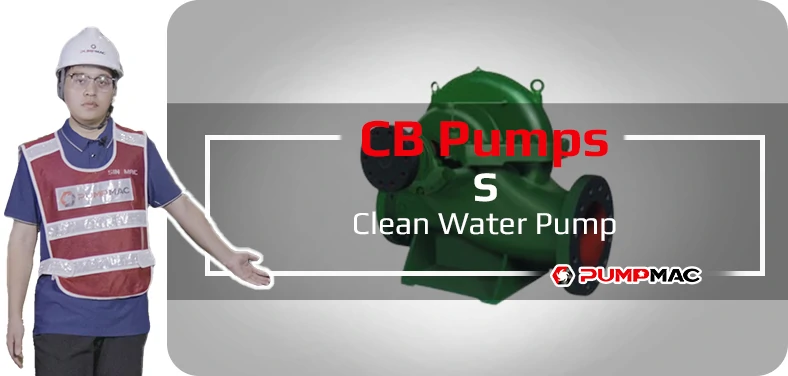

CB Type S Clean Water Pump

The S series pump is a single-stage, double-suction horizontal split centrifugal clean water pump, suitable for industrial and urban water supply and drainage. It can be used as a drainage or water supply pump in factories, mines, cities, power stations, water conservancy projects, etc. It can also be used for farmland irrigation and drainage. The “S” series pump is a high-efficiency energy-saving product with a simple structure and excellent performance. It is used to transport clean water without solid particles or other liquids with physical and chemical properties similar to water. The temperature of the transported liquid is 0 ℃~80 ℃, and the allowable inlet pressure is 0.6 MPa.

The S series pump is installed horizontally, with the suction port and discharge port both below the centerline of the pump shaft. The pump body is horizontally split, so it is not necessary to dismantle the water inlet and outlet pipes during maintenance. The shaft seal is a soft packing seal; it can also be changed to a mechanical seal.EMAC will continue to update the product introduction pages of different standard versions of pumps. Please subscribe to our website to get the latest update information.

If you are in need of pumps model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at CB Pumps.

coming soon

coming soon

coming soon

General Specifications of s S Series

Flow range:88~1400 m³/h
Head range:12~100 m

S Model Description

  • 6×14SD
  • 6-discharge diameter (inch)
  • 14-round maximum impeller outer diameter (inch)
  • S-single-stage double-suction horizontal split centrifugal pump
  • D-maximum impeller outer diameter grade code (there are six grades: A, B, C, D, E, and
  • F)

Click Kit Name to Check Part List

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
3×7SA58
88
108
16.1
24.4
30
39.5
33
26
29809.17
10.7
11.2
15Y160M2-268
74
68
0.5
4
12.6
18410080127
3×7SA47
72
93
13.05
20
25.8
28
23
16.5
29805.7
6.5
6.6
11Y160M1-263
69
63
0.8
5.6
15910080127
3×7SA47
58
70
13
16
19.4
17
15
12
29803.75
4
3.9
5.5Y132S1-258
59
58
0.5
0.7
13410080127
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
3×9SB100
135
167
27.7
37.5
46.3
60.8
56
44.8
298022
26
27
30Y200L1-275
79
75
3.6
4.8
6.3
22512580143
3×9SB81
117
145
22.5
32.5
40.2
45
40
33
298014
16.7
18.6
22Y180M-270
76
70
3
4
5.2
19712580143
3×9SB73
100
128
20.3
27.7
35.5
32.5
28
22
29809.94
11
11.8
22Y160M2-265
69
65
3.6
4.4
16512580143
3×14SD60
85
100
16.6
23.6
27.7
36.2
34
29.3
14809.1
11.4
12.3
15Y160L-465
69
65
1.8
2.5
3.8
34612580181
3×14SD45
75
90
12.5
20.8
25
31.6
26
19.6
14806.45
7.92
8
11Y160M-460
67
60
2.2
3.8
31812580181
3×14SD39
60
75
10.8
16.6
20.8
25.2
22
17.2
14804.7
5.75
5.95
7.5Y132M-456.5
62.5
59
1.8
2.2
28612580181
3×14SD38
50
68
10.5
13.8
18.8
19
17
11.2
14803.57
4.02
3.77
5.5Y132S-455
57.5
55
1.6
2
25412580181
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
4×9SB147
200
236
40.8
55.5
65.5
58
51
41
298030.95
34.6
35.1
45Y200L2-275
80.3
75
3.2
6.6
12.6
223150100170
4×9SB132
184
220
36.6
51.1
61.1
49
52
34.5
298023.5
26.3
27.5
37Y200L2-275
80
75
5.6
9.6
210150100170
4×9SB126
168
198
35
46.6
55
43
37
29
298019.7
21.1
20.8
30Y200L1-275
80
75
4.4
6.6
198150100170
4×9SB100
152
180
27.7
42.2
50
38.6
31.6
25.2
298015
16.6
16.5
22Y180M-270
78.5
75
3.5
5.4
186150100170
4×11SC140
220
272
38.8
61.1
75.5
88
76
64
298048
58
63.2
75Y280S-270
78.5
75
3.6
6.5
11.8
270150100227
4×11SC130
204
247
36.1
56.6
68.6
74
63
52.3
298037.4
45.1
46.9
55Y250M-270
77.5
75
3.4
5.6
8.8
248150100227
4×11SC126
180
230
35
50
63.8
58
50
37.4
298028.4
32.5
33.5
45Y225M-270
75.5
70
3.3
4.7
229150100227
4×11SC104
160
204
28.8
44.4
56.6
46
40
32
298020
24
25.4
30Y200L1-265
72.5
70
4
5.6
203150100227
4×14SD110
149
172
30.50
41.10
47.70
37.8
33
29
148016.17
18
18.86
22Y180L-470
74
72
1.8
3
4.8
342150100254
4×14SD100
130
156
27.7
36.1
43.3
29.3
25.6
21
148011.73
12.76
13.12
15Y160L-468
71
68
1.6
2.4
3.6
318150100254
4×14SD68
100
136
18.8
27.7
37.7
23.2
20
14
14807
8.25
8.64
11Y160M-461
66
60
1.6
2.6
280150100254
4×14SD62
90
106
17.2
25
29.4
15
12.2
10
14804.6
4.86
4.8
7.5Y132M-455
61.5
60
1.4
1.7
223150100254
4×14SDL138
200
228
38.3
55.5
63.3
38.6
35
33
148019.34
23.8
26.6
30Y200L-475
80
77
1.8
4.2
6.1
356150100286
4×14SDL120
185
224
33.3
51.3
62.2
34
30
25.5
148014.8
18.6
20.74
301Y200L-475
81
75
1.4
3.4
5.6
330150100286
4×14SDL120
168
198
33.3
46.6
55
25.5
24.6
21.5
148011.1
14
15.45
18.5Y180M-475
80
75
1.4
2.5
4
305150100286
4×14SDL106
150
176
29.4
41.6
48.8
24
21.5
18
14809.89
11.7
11.9
15Y160L-470
75
72.5
1.2
2
3
279150100286
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
5×9SB200
281
360
55.5
78
100
59.6
55
42
298043.3
51.96
54.9
75Y280M-275
81
75
6
8.6
13.8
223200125261
5×9SB200
250
315
55.5
69.4
87.5
48
43.5
32
298034.8
37
37.86
45Y225M-275
80
72.5
6
7.2
10.2
210200125261
5×9SB162
230
280
45
63.8
77.7
42
37
28.5
298026.4
30
30
37Y200L2-270
77
72.5
5.2
6.6
8.4
197200125261
5×9SB135
180
210
37.5
50
58.3
29
24.4
20
298017.77
17.87
17
22Y180M-260
68
67.5
5.4
6.1
163200125261
5×11SC128
163
200
35.5
45.3
55.5
23.6
22
15.4
148010.3
11.6
10.48
15Y160L-480
84
80
1.9
2.7
5.5
279200125259
5×11SC110
150
175
30.5
41.6
48.6
19
15.8
13
14807.4
7.9
7.94
11Y160M-477
81.5
78
1.8
2.2
3.4
254200125259
5×11SC80
130
145
22.2
36.1
40.2
14.6
12
10.2
14804.54
5.51
5.3
7.5Y132M-470
77
76
2.2
2.1
224200125259
6×11SC170
248
296
47.2
68.8
82.2
24
20
17.6
148014.6
16.4
17.8
22Y180L-476
82
79.5
1.6
2.4
4.7
273200150304
6×11SC118
188
244
32.7
52.2
67.7
15.6
13.2
9.8
14807.1
8.6
8.9
11Y160M-470.5
78.5
73
1.8
2.4
229200150304
6×11SC110
150
165
30.5
41.6
45.8
7.8
6.2
5.3
14803.7
3.7
3.6
5.5Y132S-463
68
66
1.6
1.6
179200150304
6×9SB173
245
300
48
68
83.3
16
14
11.5
14809.4
10.86
11.3
15Y160L-480
86
83
1.5
2.1
4.1
229200150306
6×9SB167
208
264
46.4
57.7
73.3
11.6
10.5
8.2
14806.6
7
7.4
11Y160M-480
84
80
1.5
1.7
2.7
203200150306
6×9SB130
188
220
36
52.2
61.1
8.8
7
6
14804.45
4.6
4.8
7.5Y132M-470
78
75
1.6
1.9
178200150306
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
6×14SD222
330
402
61.6
91.6
111.6
41
36
30
148033
38
41
45Y225M-475
83.5
80
1.8
3.1
5.2
365250150454
6×14SD198
300
362
55
83.3
100.5
34
29.5
25.5
148024.4
29
31.4
37Y225S-475
83
80
2.5
3.6
330250150454
6×14SD186
262
340
51.6
72.7
94.4
28
24
17
148018.9
21.1
20.98
30Y200L-475
81
75
2.1
3.1
299250150454
6×14SD152
220
252
42.2
61.1
70
19
16
14
148011.2
12.6
12.8
15Y160L-470
75.5
75
1.8
2
254250150572
6×18SE465
525
605
129
145.8
168
58.5
55
48.2
148092.6
92.5
99.2
110Y315S-480
85
80
3.4
3.8
5
460250150572
6×18SE445
500
565
123.6
138.8
157
54
51
43.6
148081.8
82.7
83.9
110Y315S-480
84
80
3.2
3.6
4.4
436250150572
6×18SE320
450
545
88.9
125
151.4
47.3
42
32
148054.96
63.54
63.32
75Y280S-475
81
75
2.8
3.3
4.1
406250150572
6×18SE310
410
485
86.1
113.8
9
40
35.2
29.2
148045
49.7
51.4
75Y280S-475
79
75
2.7
3
3.5
373250150572
8×9SB275
414
490
76.4
115
136
15.2
12
10
148015.2
16.1
16.68
22Y180L-475
84
80
2.7
3.6
4.7
227250200454
8×9SB226
338
420
62.7
93.89
116.6
12.6
10.6
8.4
148011
13.9
12.8
15Y160L-470
81
75
2.9
3.6
210250200454
8×9SB200
300
365
55.65
83.3
101.3
10.4
8.3
6.8
14808.7
9.35
9.65
11Y160M-465
72.5
70
2.9
3
197250200454
8×11SC240
350
400
66.6
97.2
111.1
23.8
21
19
148019.4
23.14
24.34
30Y200L-480
86.5
85
3.4
4.2
6.2
279250200442
8×11SC225
310
372
62.5
86.1
103.3
19
17
14.4
148014.5
16.8
18.2
22Y180L-480
85.5
80
3.4
3.8
5
249250200442
8×11SC175
260
340
48.6
72.2
94.4
15
13
10
148010.2
11.8
12.34
15Y160L-470
78
75
3.5
4.2
229250200442
8×11SC182
225
280
50.5
62.5
77.7
9
8
6
14806.86
7
6.93
11Y160M-465
70
66
3.4
3.5
188250200442
8×14SD390
495
614
108
137.5
170.5
38.5
36
29.5
148049.2
55.7
59.4
75Y280S-483
87
83
2.3
3.3
4.7
362250200544
8×14SD340
448
540
94.4
124.4
150
31.3
29
24
148035.7
41.1
43
55Y250M-481
86
82
2
2.6
3.5
324250200544
8×14SD320
410
510
88.8
113.8
141.6
26
24
19.5
148028.3
31.9
33.8
45Y225M-480
84
80
1.9
2.5
3
299250200544
8×14SD285
390
440
79.1
108.3
122.2
23
20
17.5
148023.5
26.2
26.2
30Y200L-476
81
80
1.8
2.4
2.6
279250200544
8×23SF400
545
600
111.1
151.4
166.6
115
110
102.4
1480169
206.6
217
250Y315M2-474
79
77
2.1
2.3
2.9
560250200953
8×23SF360
510
600
100
141.6
166.6
99
90
80
1480131
160
174
220Y355M-4
Y315M2-4
(lp23)
74
78
75
2.1
2.2
2.9
533250200953
8×23SF340
480
575
94.4
133.3
159.7
80
72
62.5
1480100
127
132.2
160Y315M2-474
77.5
74
2.1
2.2
2.5
483250200953
8×23SF270
420
480
75
116.6
133.3
64
56
49.5
148068
85.4
87.4
110Y315S-469
75
74
2.1
2.1
2.2
423250200953
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
8×18SE630
820
1030
175
227.7
286
62
55
43
1480132.9
145.8
150.7
200Y315L2-480
84.2
80
3.5
4.8
8.5
450300200807
8×18SE560
750
905
155.5
208.3
251.4
54.5
48.5
40
1480105.8
118.6
125.6
160Y315L1-478.5
83.5
78.5
3.2
4
5.6
423300200807
8×18SE495
660
840
137.5
183.3
233.3
49
44
36
148088
98
109.8
132Y315M-475
80.5
75
3
3.5
5
398300200807
8×18SE426
600
750
118.3
166.6
208.3
43.5
38.5
32.2
148072
82.7
90
110Y315S-470
76
73
2.9
3.3
4.2
373300200807
10×11SC410
540
640
113.8
9
150
23.8
22
18
148033.2
37.6
39.1
45Y225M-480
86
80
3.4
4
6
286300250594
10×11SC380
510
580
105.5
141.6
161.1
19
16.2
13.8
148024.6
26.4
27.2
37Y225S-480
85
80
3.3
3.6
4.5
254300250594
10×11SC320
460
540
88.9
127.7
150
15.6
13
9.8
148018.1
19.98
19.21
30Y200L-475
81.5
75
3.4
4
236300250594
10×11SC320
380
465
88.9
105.5
129
9.5
8.5
6
148011.8
11.7
10.8
15Y160L-470
75
70
3.3
3.4
211300250594
10×14SD550
785
975
152.7
218
270
41
37
29.2
148076.7
91.9
96.9
110Y315S-480
86
80
3.4
4.8
7.3
368300250780
10×14SD515
690
855
143
191.6
237.5
32
29.2
24.2
148056
64
70.4
90Y280M-480
85.5
80
3.3
4
5.5
323300250780
10×14SD480
645
750
133.3
179
208
25.6
22.3
18.8
148043
47.4
49.5
75Y280S-477.5
82.5
77.5
3.1
3.8
4.4
298300250780
10×14SD415
600
690
115.2
166.6
191.6
22
18
14.2
148033.8
37.46
35.57
45Y225M-473.5
78.5
75
2.9
3.7
4
273300250780
——END——

ParameterType

Capacity
Q
Head
H
Speed
N
Shaft power
Pa
Motor Eff.
η
NPSH
r
impolier
Dia
Pump diameterweight
powerTypeInlet DiaOutlet Dia
m³/sL/smr/minkWkW%mmmmmmmkg
10×18SE795
1040
1275
220.8
288.8
354
62.2
57.5
48.8
1480168.3
191.3
211.8
250Y355M-4
Y315M2-4
(IP23)
80
85
80
3.5
4.2
7.7
457350250963
10×18SE735
930
1170
204
258
325
55
51.3
43.5
1480137.6
162.4
173.2
220Y355M-4
Y315M2-4
(IP23)
80
74.5
80
3.5
3.8
5.6
432350250963
10×18SE690
855
1080
191.6
237.5
300
48.5
46
40
1480113.9
127.5
147
185Y315M-480
84
80
3.5
3.6
4.6
406350250963
10×18SE570
780
960
158.3
216.6
266.6
43
40.5
36
148088.9
104.9
117.6
132Y315M1-475
82
80
3.6
3.5
4
381350250963
12×14SD850
1140
1360
236.1
316.6
377.7
41.8
37
31
1480120.9
133
138.3
160Y315M2-480
86.2
83
3.6
4.8
7.1
371350300953
12×14SD800
1060
1290
222.2
294.4
358.3
36
32
25
148098
107.4
109.7
132Y315M-480
86
80
3.5
4.1
6.2
347350300953
12×14SD720
940
1100
200
261.1
305.5
26.5
23.5
19
148064.9
71.19
71.14
90Y280M-480
84.5
80
3.5
3.8
4.3
310350300953
12×14SD720
860
1000
200
238.8
277.7
20.2
18
14
148052.8
53
50.8
75Y280S-475
79.5
75
3.5
3.6
4
280350300953
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

Global Activity

WhatsApp Online logo

Sales Team


Construction-ConeMacWhatApp-Icon

Pump-PumpMacWhatApp-Icon

Mining-MinMacWhatApp-Icon

Generator-SinoGenWhatApp-Icon

EV System-EVMacWhatApp-Icon

Parts-PartMacWhatApp-Icon


Service Team

Sales Manager-Mrs.Wendy FuWhatApp-Icon

Sales Director-Mr.Jasper Lee WhatApp-Icon

Shipping ServiceWhatApp-Icon

Contact EMAC Now!
